DPP-270/360E High Speed Flat Type Blister Packing Machine

Byhanyoo
Share on Pinterest Share on LinkedIn Share on WhatsApp

The blister packing machine is special for pharmaceutical, food, chemical industrial usage.It has the function of packaging, detecting, rejection.It adopted PLC control system, touch screen interface, frequency converter system, which make the machine automatic running more stable and enhanced the machine life time.The machine can use ALU PVC, ALU ALU, PVC PAPER material for blister packaging. It meet GMP standard.

Play

Properties

ModelDPP-270EDPP-360E
Cutting Frequency(times/min)ALU-PVC10-60ALU-PVC10-60
ALU-ALU10-30ALU-ALU10-30
Output Capacity(pcs/h)ALU-PVC4000-9000ALU-PVC6000-12000
ALU-ALU2000-4000ALU-ALU3000-6000
Travel(mm)30-13030-150
Max.Blister Size270*130*20mm360*750*20mm
Air Consumption≥0.38m³/min≥0.42m³/min
Voltage380V 50HZ/220V60HZ380V 50HZ/220V60HZ
Plastic Film(mm)280*(0.15-0.5)360*(0.15-0.5)
Aluminum Foil(mm)280*(0.02-0.035)360*(0.02-0.035)
Over Size(mm)3900*740*17004560*740*1700
Weight(kg)17001700

Production Workflow Chart

Sample Display

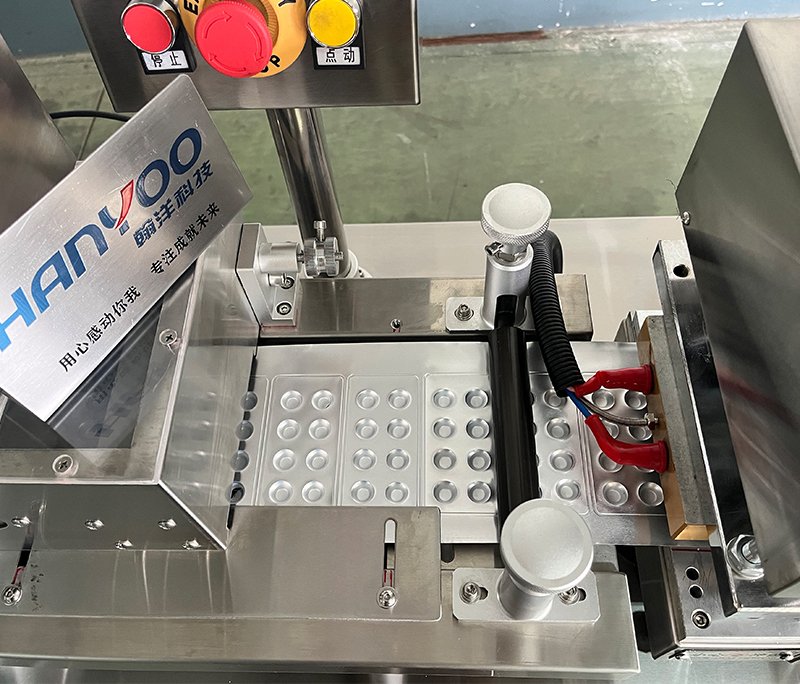

Detailed Display

Exhibition

Packaging And Shipping

Why Choose Us

Specialized Factory

Economical Pricing Options

On-Time Delivery

Perfect Customer Service

If you have any questions or need to develop customized equipment solutions, please contact our Email：hanyoo.jason@foxmail.com for the most thoughtful support!

Welcome To Our Blister Packing Machine Line Factory!

Frequently Asked Questions

Lidding materials are crucial for sealing the formed blister cavity and maintaining package integrity until the point of use. The primary function is to protect the product while allowing for ease of access by the patient or healthcare provider. Aluminum Foil: Standard choice for lidding in most blister applications.

Mastering the 4 C’s of packaging—Clarity, Creativity, Consistency, and Consumer-Centricity—can significantly enhance a product’s market presence and influence consumer behaviour.

These are among the most important factors to consider for packages containing over-the-counter or prescription pharma- ceutical products. In terms of safety, studies have consistently shown that blister packaging outperforms child-resistant (CR) bottles.
